Die Casting Defects and Prevention

Every die casting defect is information: it tells you where heat, flow, pressure or discipline went wrong. Factories that read that information run stable processes; factories that hide it ship you the evidence. This guide covers the eight defects that account for most casting problems, what actually causes each, and the prevention logic — which almost always begins before the first shot, at tooling design.

For buyers, the practical value is interrogation power: knowing why porosity forms tells you exactly what to ask a supplier who claims they control it.

Request a Quote Speak to an Engineer

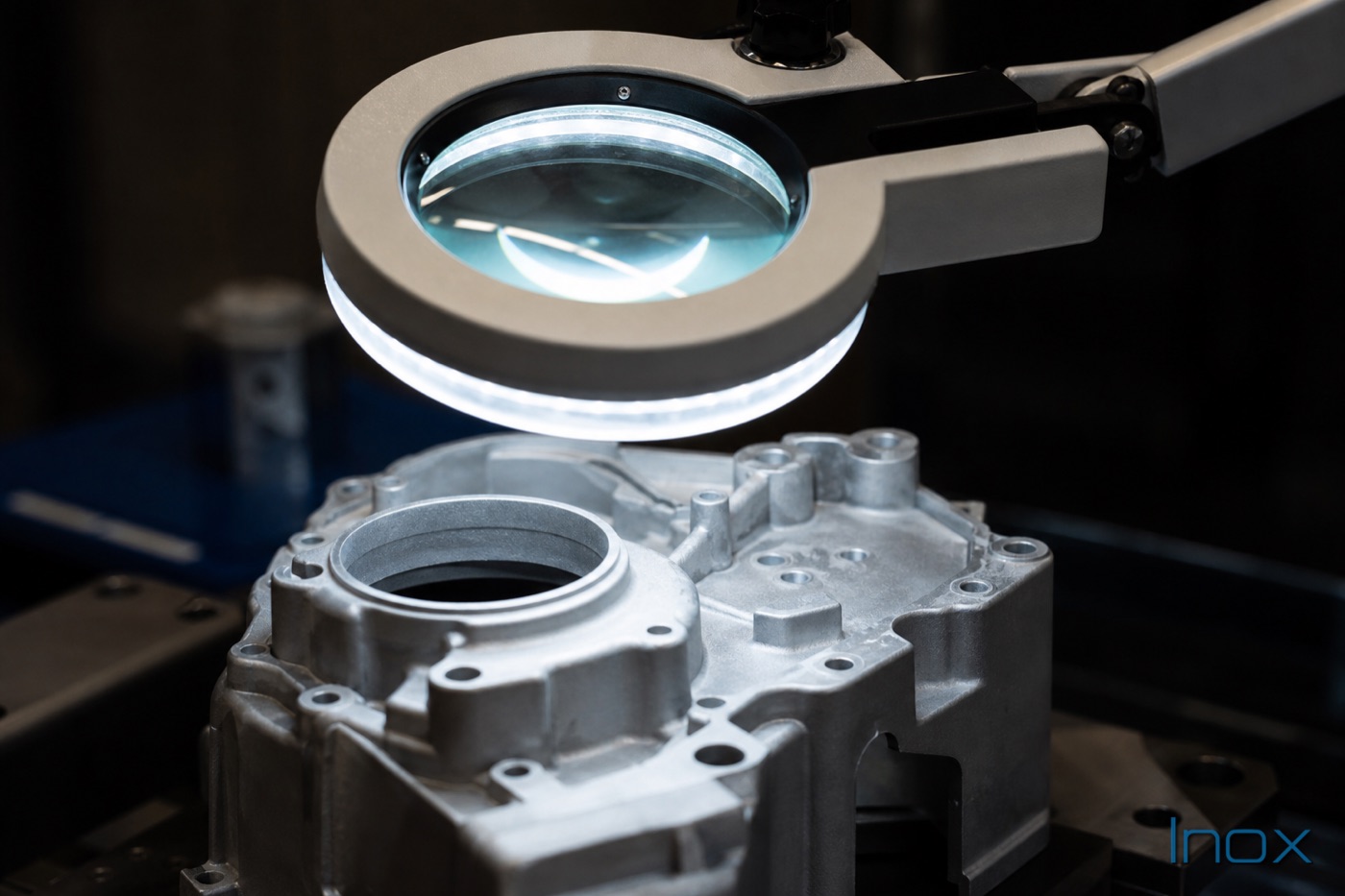

A die-cast part examined under an illuminated inspection magnifier

At a glance

  • The big three: porosity, cold shuts, flash
  • Most defects trace to design and gating, not operator error
  • Each defect tells you something specific about the process window
  • Prevention is a DFM conversation, not an inspection step

The Big Three: Porosity, Cold Shuts, Flash

Gas porosity — bubbles trapped in the metal — forms when air, lubricant vapor or dissolved gas cannot escape ahead of the filling front. Prevention is flow design: gates that fill progressively, vents and overflows placed where the last metal arrives, shot profiles tuned so the front doesn't churn. Shrinkage porosity is its cousin with a different cause — thick sections freezing last with no feed metal — and its prevention is your design's wall uniformity plus intensification pressure doing its job. This split matters: one defect asks the toolmaker for better venting, the other asks the designer to core out bulk.

Cold shuts — seams where two metal fronts met too cold to fuse — trace to slow fill, low metal temperature or flow paths that split and reunite at the far end. Prevention lives in gating design and thermal discipline. A cold shut on a structural part is a crack rehearsal; on a cosmetic part it is a visible line no finish hides. Either way it is a process signature, never a random event.

Flash — thin metal fins escaping at the parting line — signals clamping force losing to injection pressure, or a die face no longer sealing. A little flash is trimmed as routine; growing flash is a message about die wear or machine fit that a disciplined factory reads early. Buyers see the difference in edge quality lot after lot.

Table mapping six die casting defects to their root cause and where prevention lives
Each defect maps to a cause and a prevention point — mostly at tooling design and process control.

The Other Five, Briefly

Blisters: subsurface gas expanding when a casting is heated — often discovered painfully at powder-coat cure. Prevention is upstream porosity control, which is why finish-bound parts get stricter flow design. Soldering: aluminum welding itself to die steel, tearing surfaces at ejection — controlled by die temperature, draft and coatings. Flow marks and lakes: cosmetic ripples from front behavior, managed by gating and thermal balance, judged against limit samples. Ejector marks and drag: mechanical witnesses whose placement was decided at tooling design — the DFM review puts them where your part can afford them. Inclusions: oxide films or foreign particles folded into the metal, prevented by melt hygiene and furnace discipline.

Notice the pattern across all eight: prevention concentrates at tooling design and process control, not at final inspection. Inspection finds defects; engineering prevents them. A supplier whose quality story is all inspection is running a sorting operation, not a process.

What This Means for Your Program

Practically: mark pressure-tight zones and cosmetic faces on the drawing, because those words change gate placement, venting and verification methods. Expect trial sectioning on porosity-sensitive parts. Expect limit samples for cosmetic judgment. And expect a reaction plan — containment, root cause, correction, records — because zero-defect promises are marketing; controlled response to drift is engineering.

One more buyer's habit worth building: when a supplier shows you sample parts, ask which defects those samples were selected to hide. Golden samples tell you the process's best day; sampling records tell you its average day; the reaction plan tells you its worst day. Programs live on the second and survive on the third — evaluate all three, and weight your sourcing decision accordingly.

Representative application illustration — not a record of a specific customer program.

Defect → Cause → Prevention Map

The eight defects at a glance — and where each gets prevented:

DefectPrimary causePrevention lives in
Gas porosityTrapped air/vapor in fillGating, venting, shot profile
Shrinkage porosityThick sections freezing unfedWall uniformity (design) + intensification
Cold shutsFronts meeting too coldGating design, metal/die temperature
FlashClamp vs pressure, die face wearMachine sizing, die maintenance
BlistersSubsurface gas + later heatUpstream porosity control
SolderingAluminum bonding to die steelDie temperature, draft, surface treatment
Flow marksFront behavior on cosmetic facesGating, thermal balance, limit samples
InclusionsMelt contaminationFurnace and melt hygiene

Frequently Asked Questions

Is some porosity always present in die castings?

Microscopic porosity is inherent to the process at some level; the engineering question is whether it sits where it matters, at a size that matters. Flow design pushes it away from critical zones, and verification — sectioning at trial, leak testing in production where the drawing requires — proves the outcome. Specify the function (pressure-tight, machined-surface-critical) and the plan targets it.

Can defective castings be repaired?

Some cosmetic issues rework honestly; structural defects generally should not be — impregnation and welding have narrow legitimate uses and wide abuse potential. Our default is that nonconforming parts get contained and root-caused, not rescued. Ask any supplier where they draw the rework line; the answer tells you whose problem defects become.

What should I ask a supplier about defect control?

Three questions expose most of the truth: How does your tooling design prevent porosity in my critical zones (expect gate/vent specifics)? What happened with your last real defect escape (expect a containment-and-correction story, not denial)? Can I see a redacted reaction plan (expect a document)? Suppliers with process discipline answer all three easily.

Do zinc and aluminum have different defect profiles?

Same physics, different emphasis: aluminum programs fight porosity and soldering harder (higher temperature, cold chamber transfer), while zinc's gentler process shifts attention to cosmetic flow behavior on visible parts. Prevention logic is identical — flow, heat, pressure, discipline — tuned per alloy at the tooling review.

How do defects get handled when they reach a customer anyway?

With a containment-first sequence: suspect lots hold on both sides, replacement stock ships against the schedule, and root cause runs at the source — tool room, process engineering and inspection sharing one building makes that loop fast. You receive the analysis and the corrective action in writing, and the program file keeps both. No factory escapes zero defects forever; the difference buyers can select for is whether the response is a documented system or an improvised apology.

Does tooling age change the defect picture?

Yes, predictably: worn gates change flow behavior, tired cavity surfaces begin soldering and dragging, and parting faces that no longer seal grow flash. That is why tool maintenance runs on shot count rather than complaints, and why cavity-level records matter on multi-cavity dies — aging announces itself in the numbers long before it reaches your incoming inspection, if anyone is reading them.
